Introducing Tesla Powerwall 3
If you're interested in learning more about Tesla's latest battery backup system, Tesla Powerwall 3, keep reading for a breakdown of Tesla’s newest and most highly anticipated battery backup system. Find out how it stacks up against earlier models and the advantages it offers to your home or business.
Why Install Solar Power Batteries?
Utilizing solar panels allows for a sustainable energy solution for your household, harnessing the sun's natural power. While solar panels can generate significant daily energy, the key is storing this surplus energy. This is where Tesla Powerwall batteries shine, providing a way to capture and store excess energy to use during cloudy days or power outages. Join us as we dive into the world of the Tesla Powerwall 3 and uncover the incredible potential of installing energy storage in your home.
Covered Topics:
- What is a Tesla Powerwall?
- What's new with the Tesla Powerwall 3?
- A Comparative Analysis of Tesla Powerwall 3, Powerwall 2, and Powerwall +
- Tesla Powerwall 3 Cost and Coverage
- Tesla Powerwall 3 Sizing
- Frequently Asked Questions
What is a Tesla Powerwall?
For those new to the world of Tesla Powerwall, these innovative battery systems are designed to store solar energy for backup purposes. Embracing solar energy not only grants homeowners more autonomy from the conventional power grid but also leads to reduced utility bills and a smaller carbon footprint.

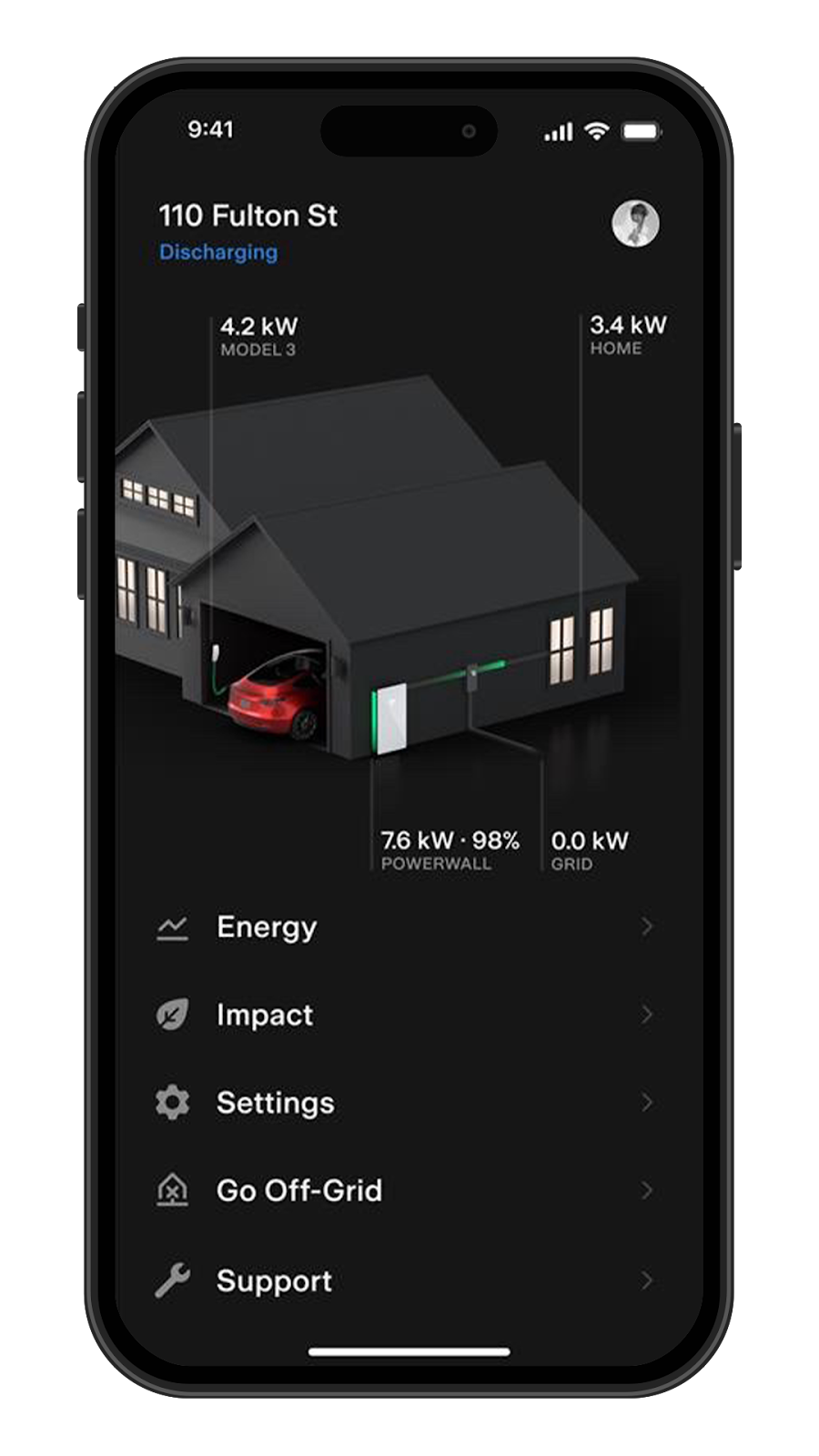

The latest Powerwall model, Powerwall 3, stands out as the pinnacle of functionality. With the Tesla App, users can effortlessly monitor their energy storage and usage, seamlessly integrating it into their daily lives.
What’s New With the Tesla Powerwall 3?
Improved Power Output
The Tesla Powerwall 3 boasts several significant improvements over the Powerwall 2 and Powerwall +. The 11.5kW continuous power rating (on-grid) might be most notable–over two times higher than the 5kW Powerwall 2. The battery backup power rating is 11.5kW continuous compared to the Powerwall 2’s 7kW peak. This improved continuous output means that only one Powerwall 3 battery can support the power needs of most homes during a blackout.
Better Battery Efficiency
The Powerwall 2 operates as an AC-coupled battery system, lacking a solar inverter but capable of being charged from any AC source, including existing solar systems or microinverters. Conversely, both the Powerwall + and Powerwall 3 are DC-coupled hybrid systems equipped with an integrated solar inverter, directly charging the battery from connected solar panels. Hybrid systems offer superior efficiency, as both the battery and solar array operate on DC power, eliminating the need for DC to AC conversion during solar charging.
Active Cooling System of the Powerwall 3
In contrast to its predecessor, the Powerwall 2, which relied on a complex liquid thermal management system, the latest Powerwall employs a relatively straightforward active cooling system driven by fans. This new design incorporates a lower cold air intake, utilizing natural convection to aid in cooling the inverter. The process is straightforward: as the substantial aluminum housing (heat sink) heats up, warm air ascends, creating a natural airflow, while the built-in fan enhances this circulation based on temperature fluctuations. Notably, this method mirrors the cooling approach utilized in many solar inverters and all-in-one hybrid systems. However, Tesla has elevated this concept by integrating dual fans and a distinctive air duct system, which channels air along both the front and rear of the battery unit.
Some additional improvements include:
- The battery can support up to 20kW DC of solar.
- It is easier to install than the Powerwall + due to a weight reduction.
Powerwall 3 vs. Powerwall 2 and Powerall + - What Stayed the Same?
Three prominent aspects have remained consistent across the Powerwall +, Powerwall 2, and Powerwall 3: the energy capacity, round-trip efficiency, and warranty. Like the older models, the energy capacity of 13.5kWh has remained consistent, the round-trip efficiency remains around 90%, and the warranty holds firm at ten years.
Comparing the Powerwall 2, Powerall +, and Powerwall 3
A brief visual comparison of the Powerwall +, Powerwall 2, and Powerwall 3.
Features |
|||
Energy Capacity |
13.5 kWh |
13.5 kWh |
13.5 kWh |
Power Uses |
Commonly used to power emergency electrical circuits, home lighting, and outlets |
Powers home lighting, outlets, a refrigerator, and small to medium appliances |
Larger electrical appliances like most AC/heat pumps, water heaters, laundry appliances, wells, pool equipment, and EV chargers |
Ability to Stack |
Up to 10 units |
Up to 10 units with a combination of PW+ and PW2 |
Up to 4 units |
Continuous Power Supply - On-Grid Power |
5 kWh |
5.8 kWh without sun, or 7.6 kWh with full sun |
11.5 kWh |
Weight |
251 lbs. |
344 lbs. |
287 lbs. |
Built-in Inverter |
No |
Yes |
Yes |
Round-Trip Efficiency |
90% |
90% |
97.5% |
Warranty |
10-year warranty |
10-year warranty |
10-year warranty |
Sources: Tesla Powerwall + Datasheet, Tesla Powerwall 3 Datasheet, Tesla Powerwall 2 Datasheet

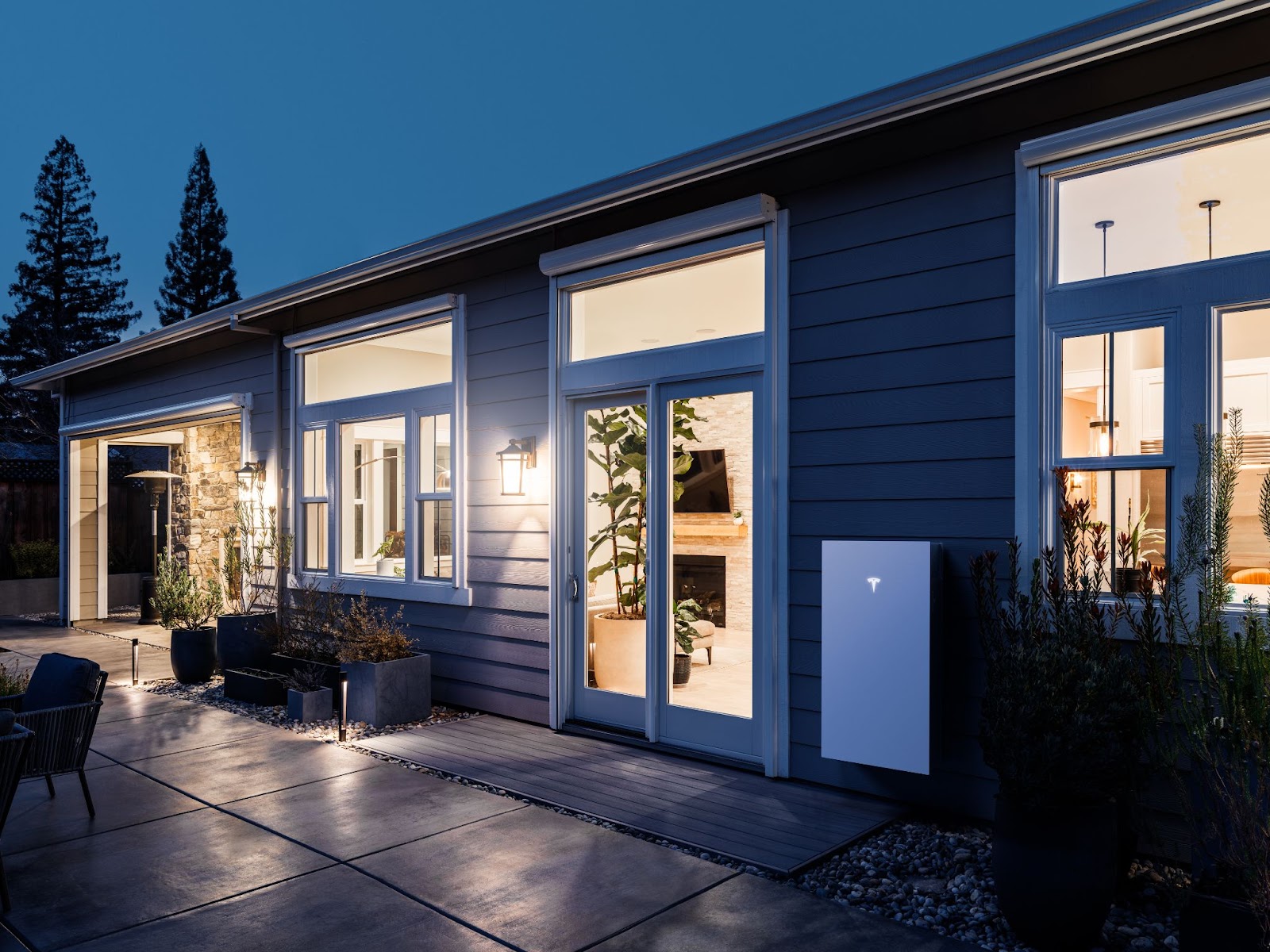

Choosing the Right Solar Battery![Tesla Powerwall 3 Battery Backup for home](https://lh7-us.googleusercontent.com/PqwKnfGvMfrFByZujftwSCDd3bM9JrM5beQi-KmLm_cvRsn3mK1L6EUO6B9OeJqIxwtyEQapH7efSz0wJaZzSqRfH3lfRGEytqp-82GfSyfA5VSs58lq-nVUVMEGoV4YQR4-HFH6rAoqo-sh10-JgxE)
Opting for solar power battery storage is an excellent way to make the most out of your at-home solar panel system. However, it is essential to consider how you want to use your solar battery.
Finding the correct battery for you can involve a lot of factors. Working with a solar expert who can provide quotes, estimates, and insight into your unique situation is often the most straightforward.
Tesla Powerwall 3 Cost
The cost of the Tesla Powerwall 3 depends on many factors, including where you live, the complexity of the installation process, and how many units you are looking to install. Depending on your unique situation, you may also be eligible for the federal solar tax credit or the battery backup SGIP rebate potentially allowing you to offset the entire cost of both the battery and its installation.
Tesla Powerwall 3 Capacity
As previously mentioned, the energy capacity of the Tesla Powerwall 3 remains the same as the previous models, at 13.5kWh. However, while its energy capacity is the same, the Tesla Powerwall 3 has seen upgrades in its continuous power supply as it has grown from 5.8 kW to 11.5 kW.
13.5 kWh - New Heights of Power Supply
The newly improved continuous power supply of the Tesla Powerwall 3 is its most highly anticipated update. This new energy output is a promising option for those looking to power their home on as few batteries as possible. This new energy output means cost savings for you – without sacrificing power.
Tesla Powerwall 3 Size & Specs
The new Tesla Powerwall 3 is heavier than the Powerwall 2 but lighter than the Powerwall +. Its dimensions are 43.25 inches x 24 inches x 7.6 inches, making it more compact than its predecessor.
Frequently Asked Questions
Commonly frequently asked questions about the Tesla Powerwall 3 are as follows:
Can I combine my Tesla Powerwall 3 with my Tesla Powerwall 2?
Tesla Powerwall 3 batteries can pair with other Powerwall 3 batteries. But the Powerwall 3 can’t pair with the Powerwall 2 or Powerwall + battery systems.
Can I add the Powerwall 3 to my current solar system?
The Tesla Powerwall 3 system is compatible with all major solar inverter models and brands.
Can I have multiple Powerwall 3 units?
Yes, customers can bundle the Tesla Powerwall 3 with multiple units.
Is the Tesla Powerwall 3 Right For You?
Ultimately, whether or not the Tesla Powerwall 3 is the best choice will vary from person to person. It is essential to consider all the aspects of your home’s solar system and energy needs.
If you need a powerful solar battery backup system in 2024, the Tesla Powerwall 3 by Tesla is a top choice. It's a well-engineered option supporting up to 20 kW DC of solar and providing 11.5 kW AC of continuous power per unit.
When choosing a new battery system, it can be helpful to talk with experts in the industry, like us at Citadel Roofing and Solar.
As industry professionals, Citadel Roofing and Solar is here to help customers find the best solar battery system for their homes. When it comes to installation, we have your back as well. Reach out today with any questions you might have.
